Cluster basics and commands

Modules

Some programs are only available through modules: you need to load modules to use them. As an example, if you want to compile MPI programs with mpic++, you’ll have to load the correct module:

module load mpi/openmpi-x86_64

As always,

man module

will give you all possible options/commands. Here are the most important.

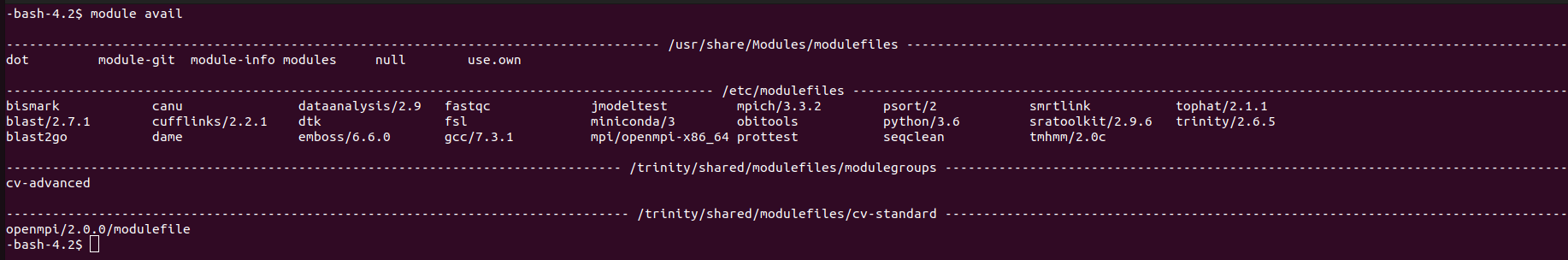

module avail

lists all available modules.

MobXterm

module list

lists all loaded modules.

module load X
    module unload X

loads and unloads modules.

module purge

unloads all modules.

Don’t forget to load the appropriate modules inside submission scripts (see Writing a submission script). These inside-script module loads are usually preceded by module purge.

Listing partitions and nodes

sinfo

The STATE column gives the states of the nodes given in the NODELIST column and may take (among others) the following values:

idle: no resource allocated,
mix: some resources allocated, but no resource fully allocated,
alloc: at least one resource (number of CPUs or memory) fully allocated,
drain: will finish the jobs currently running but will not accept any more jobs,
down: node is shutdown.

All the possible states and a thousand options can be listed with:

man sinfo

Also, the following command will display the characteristics of each node:

sinfo --long --Node

The option -p allows restricting to the nodes of a single partition. The important columns of the output are CPUS, which gives the maximum number of CPUs that can be allocated, and Memory, which gives the maximum available memory in Megabytes.

Listing submitted jobs

squeue

If you want to see only yours:

squeue -u `whoami`

The ST column is for the state of the job. You’ll usually see either R for running or PD for pending.

Partitions, nodes and jobs in a GUI

If X is activated (see section Running a GUI), one can also run:

sview&

Running tasks

There are two ways to run tasks on nodes: submit a job (section Submitting a job) or start an interactive session (section Running an interactive session). Interactive sessions should only be used in two cases:

you want to run a GUI,
you want to debug your program.

In all other cases, it is better to submit a job script. The reason is that you need to allocate resources when starting an interactive session. By nature, there is usually downtime in interactive sessions (modifying scripts/programs, or not realising that the task has completed and letting it idle), and during this downtime, the resources you allocated and are currently not using are also unavailable to the other cluster users.

If a practice script fails, keep the exact command, scheduler state, and error output. Review those details against the job-script guide before retrying with a smaller test job.

Running an interactive session

You can only ssh directly onto a node if you have one job active on it. However, a similar result can be obtained by running:

srun --partition=ibrain --ntasks=1 --cpus-per-task=12 --mem=12G --pty /bin/bash -l

The options you can give there are mostly the same as the sbatch option (see Writing a submission script), and they specify resource allocation. The –pty /bin/bash -l part tells slurm to open a console. From there, you can execute the programs you want.

As long as the console is open (type exit to leave), the resources will be allocated.

As this is a long command, you may want to use an alias. Open your ~/.bashrc and add a line:

alias interactive='srun --partition=ibrain --ntasks=1 --cpus-per-task=1 --mem=1G --pty /bin/bash -l'

After relogging or running

source ~/.bashrc

you’ll be able to simply type interactive to start an interactive session.

Running a GUI

If you connect with NX

Nothing more to do.

If you connect with SSH

Linux / mac

Either give the -X option to the ssh command:

ssh -X esmeralda

or add ForwardX11 yes in your ~/.ssh/config :

Host esmeralda
        Hostname 10.195.17.215
        User LOGIN
        ForwardX11 yes
        IdentityFile ~/.ssh/esmeralda

Mac

Install Xquartz.

Windows

Nothing more to do.

In all cases

Give the –x11 option to srun.

srun --x11 --partition=biopatic --nodelist=biopatic-node01 --ntasks=1 --pty rstudio

Or in two steps:

srun --x11 --partition=biopatic --nodelist=biopatic-node01 --ntasks=1 --pty /bin/bash -l

then

rstudio

Submitting a job

Write a submission script launch.job (see Writing a submission script), then run:

sbatch launch.job

Stopping a job

Get the ID number N of the job with the squeue command (JOBID column), then run:

scancel N
